Maximum Measuring Accuracy
Linear Accuracy at 0.100″ Travel
± 0.0005″ (0.010 mm)
Full Range ± 0.001″ (± 0.020 mm)
Repeatability ≤ 0.0005″ (0.010 mm)
Notable Features
These gages are comparative reading models.
Large range and contact travel.
Rugged, 24/7 shop use.

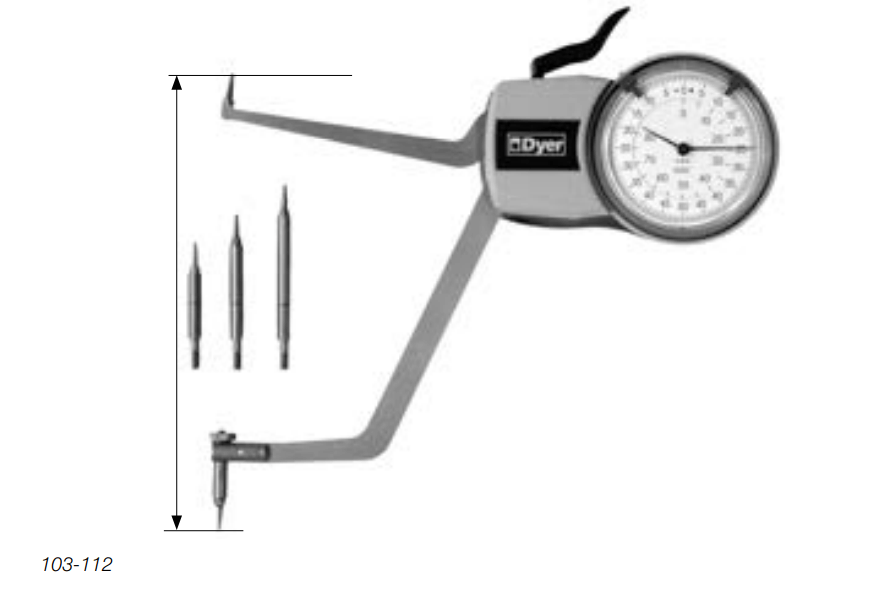

Large Range, Comparator Measurement 103 Series
| Range | L Dim Reach of Arms | A Dim Max Depth Groove | B Dim Min Width Groove | Carbide Ball Contact Standard Ø | Graduation | Order
Number |
| Inch Specifications | ||||||
| 2.0″–4.0″ | 3.15″ | 0.48″ | 0.100″ | 0.040″ | 0.0005″ | 103-110 |
| 3.6″–5.6″ | 3.15″ | 0.48″ | 0.100″ | 0.040″ | 0.0005″ | 103-111 |
| 5.2″–7.2″ | 3.15″ | 0.48″ | 0.100″ | 0.040″ | 0.0005″ | 103-112 |
| Metric Specifications | ||||||
| 50–100 mm | 85 mm | 12.2 mm | 2.5 mm | 1 mm | 0.010 mm | 103-210 |
| 90–140 mm | 85 mm | 12.2 mm | 2.5 mm | 1 mm | 0.010 mm | 103-211 |
| 130–180 mm | 85 mm | 12.2 mm | 2.5 mm | 1 mm | 0.010 mm | 103-212 |
| Range of Application | 103-110 | 103-111 | 103-112 | |||
| Range | Range of Indication | Range | Range of Indication | Range | Range of Indication | |
| Measuring Contact 1 | 2.00–2.80″ | 1.98–2.82″ | 3.60–4.40″ | 3.58–4.42″ | 5.20–6.00″ | 5.18–6.02″ |
| Measuring Contact 2 | 2.40–3.20″ | 2.38–3.22″ | 4.00–4.80″ | 3.98–4.82″ | 5.60–6.40″ | 5.58–6.42″ |
| Measuring Contact 3 | 2.80–3.60″ | 2.78–3.62″ | 4.40–5.20″ | 4.38–5.12″ | 6.00–6.80″ | 5.98–6.82″ |
| Measuring Contact 4 | 3.20–4.00″ | 3.18–4.02″ | 4.80–5.60″ | 4.78–5.62″ | 6.40–7.20″ | 6.38–7.22″ |
