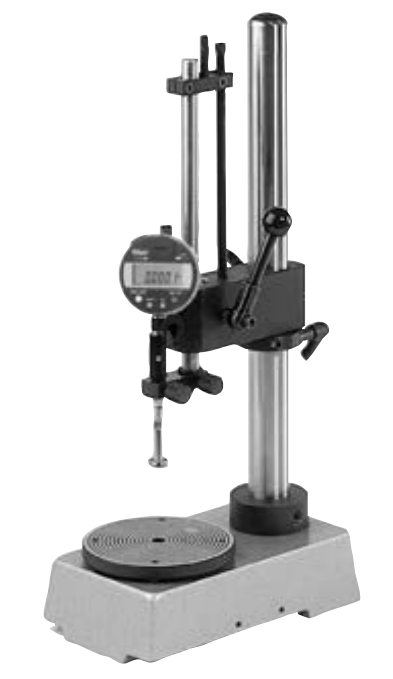

Model 201-004 (Larger)
Notable Features
50% more accuracy.
Easy to use bore gaging.
200 Series is non-tipping, hands-off gaging. No operator error.
Table Ø is 4.72″ (120 mm)
Built-in adjustable depth stop controls depth of measurement in the bore.
Protects contact points.
Adjusts quickly, versatile applications.
The lever moves entire gage into part.

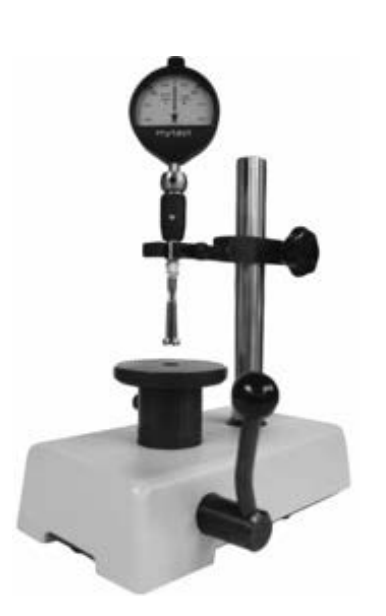

Model 201-000 (Smaller)
Notable Features
50% more accuracy.
Easy to use bore gaging.
200 Series is non-tipping, hands-off gaging. No operator error.
Table Ø is 3.15″ (80 mm)
Built-in adjustable depth stop controls depth of measurement in the bore.
Protects contact points.
Adjusts quickly, versatile applications.
The table base itself is raised by the lever.
Specials
Dyer can customize a bench stand to meet your needs. We provide part holding fixtures, special probes, base plates, stroke lift, etc. Contact our application engineering with your needs.
Model 201-004 Bench Stand
This bench stand has adjustable height up to 9.84″ (250 mm) and a stroke/lift 3.54″ (90 mm).
Model 201-000 Bench Stand
This bench stand has adjustable height up to 5.118″ (130 mm) and a stroke/lift 1.57″ (40 mm).
209-040 Floating Probe Holder
Eliminates radial plane errors when measuring small parts. Permits hands-off gaging.
201-020 90° Angle piece for hard-to-reach bores
Specifications: 90° angle piece that easily attaches to the 200 Series measuring probe and handles
