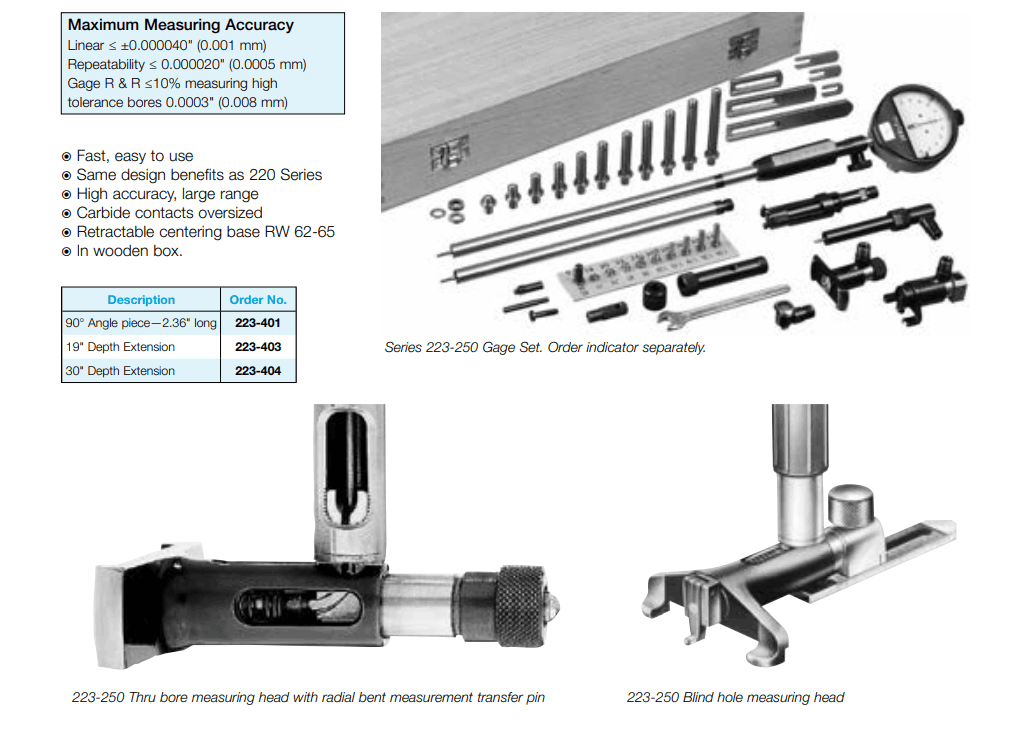

Maximum Measuring Accuracy
Linear ≤ ±0.000040″ (0.001 mm)
Repeatability ≤ 0.000020″ (0.0005 mm)
Gage R & R ≤10% measuring high
tolerance bores 0.0003″ (0.008 mm)
Models and Specifications
| Measuring
Range Inch (mm) |
Distance from the
Bottom “H” Inch (mm) |
Contact Point Max.
Travel Inch (mm) |
Measuring Depth | Total
Measuring Depth |
Order No.
Standard Handle with Carbide Contacts & Tool Steel Head |
| Thru Hole
0.708″–6.30″ (18.0–160.0) |
0.334″ (8.5) |
0.055″ (1.4) |
1.18″ | 5.19″ | 223-250 |
| Blind Hole
0.790″–5.51″ (20.0–140.0) |
0.059″ (1.5) |
0.059″ (1.5) |
3.66″ | 7.32″ |
